Ifor Williams GP146 Tri Axle Trailer
Model Details

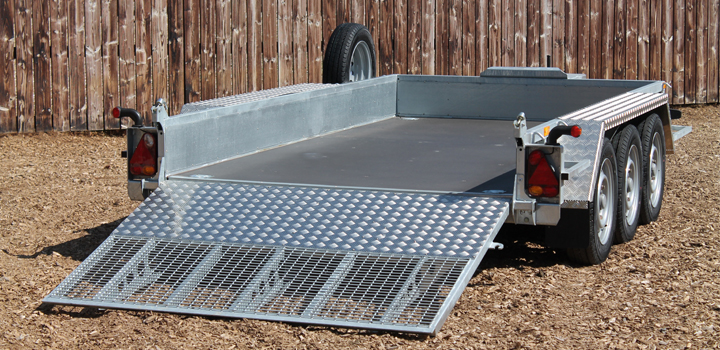

Atkins Farm Machinery stocks the GP146 Tri-axle plant trailer from Ifor Williams for sale in Cork. The Ifor Williams GP146 Tri Axle trailer is equipped with 6.47 meters of extra length and a width of 2.3 meters and can transport general plant machinery and loads up to 3500 kg in weight. The Ifor Williams GP146 TRI comes with either a full width ramp or hinged skids fitted as standard.
The Ifor Williams GP146 TRI trailer is widely recognised as one of the toughest plant trailers in the industry. The trailer has an open rectangular steel framework that is integrated with the chassis. The GP146 tri-axle model like all Ifor Williams plant trailers is fitted with a tough resin-coated plywood platform.
Other options include factory fitted aluminium treadplate floor covering, bolt on ramp knife edge and 1.8m/6’ skids or ramp in place of the standard size of 1.2m/4’. Ifor Williams GP models are fitted with integrated ramp or skid supports which ensures trailers are supported whilst being loaded without the need to deploy prop stands.
Specification
| Model | Tyres | Gross Weight | Unladen Weight | Internal Length | Internal Width | Overall Length | Overall Width |
|---|---|---|---|---|---|---|---|
| GP106 Skids | 155/70R12C | 3500kg | 705kg | 3.06m/10′ | 1.78m/5’10” | 5.25m | 2.30m |
| GP106 Ramp | 155/70R12C | 3500kg | 720kg | 3.06m/10′ | 1.78m/5’10” | 5.25m | 2.30m |
| GP126 Skids | 155/70R12C | 3500kg | 780kg | 3.66m/12′ | 1.78m/5’10” | 5.85m | 2.30m |
| GP126 Ramp | 155/70R12C | 3500kg | 795kg | 3.66m/12′ | 1.78m/5’10” | 5.85m | 2.30m |
| GP126 Skids Tri Axle | 155/70R12C | 3500kg | 890kg | 3.66m/12′ | 1.78m/5’10” | 5.85m | 2.30m |
| GP126 Ramp Tri Axle | 155/70R12C | 3500kg | 905kg | 3.66m/12′ | 1.78m/5’10” | 5.85m | 2.30m |
| GP146 Skids Tri Axle | 155/70R12C | 3500kg | 915kg | 4.28m/14′ | 1.78m/5’10” | 6.40m | 2.30m |
| GP146 Ramp Tri Axle | 155/70R12C | 3500kg | 930kg | 4.28m/14′ | 1.78m/5’10” | 6.47m | 2.30m |
