Ifor Williams BV105 Box Van
Model Details

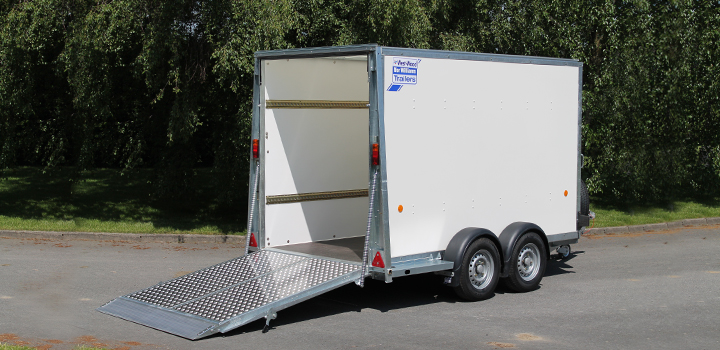

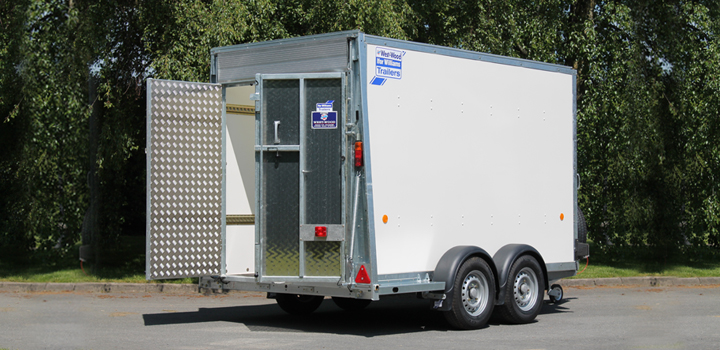

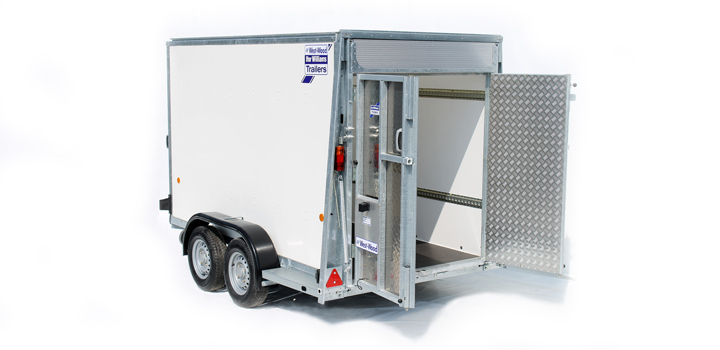

Here at Atkins Farm machinery we stock the BV105 Box Van trailer from Ifor Williams. A trailer that is available in three sizes, 5. 6 and 7 foot vans. Each can carry loads up to 2700 kg in weight and have an overall length of 4.7 meters. The 7 foot van is available with a length of 4.10 meters and all come with a width of 2.10 meters.
All braked box models feature an exclusive beam axle and leaf spring suspension system which has been developed for a safe and stable ride. Similar systems are widely used on commercial vehicles, where performance under load is essential. The BV105 box trailer from Ifor Williams comes with roller shutter, combination ramp doors or van rear doors.
Specification
| Model | Tyres | Gross Weight | Unladen Weight | Internal Length | Internal Width | Overall Length | Overall Width |
|---|---|---|---|---|---|---|---|
| BV84 Single Axle | 165R13C | 1400kg | 515kg | 2.40m | 1.17m | 3.90m | 1.80m |
| BV84 | 165R13C | 2700kg | 605kg | 2.40m | 1.17m | 3.90m | 1.80m |
| BV85 5′ H/R | 165R13C | 2700kg | 640kg | 2.40m | 1.47m | 4.10m | 2.10m |
| BV85 5′ H/R Single Axle | 165R13C | 1400kg | 550kg | 2.40m | 1.47m | 4.10m | 2.10m |
| BV85 6′ H/R | 165R13C | 2700kg | 675kg | 2.40m | 1.47m | 4.10m | 2.10m |
| BV85 6′ H/R Single Axle | 165R13C | 1400kg | 585kg | 2.40m | 1.47m | 4.10m | 2.10m |
| BV85 7′ H/R | 165R13C | 2700kg | 770kg | 2.40m | 1.47m | 4.10m | 2.10m |
| BV85 7′ H/R Single Axle | 165R13C | 1400kg | 620kg | 2.40m | 1.47m | 4.10m | 2.10m |
| BV105 5′ H/R | 165R13C | 2700kg | 705kg | 3.00m | 1.47m | 4.70m | 2.10m |
| BV105 6′ H/R | 165R13C | 2700kg | 735kg | 3.00m | 1.47m | 4.70m | 2.10m |
| BV105 7′ H/R | 165R13C | 2700kg | 770kg | 3.00m | 1.47m | 4.10m | 2.10m |
| BV125 6′ H/R | 165R13C | 2700kg | 800kg | 3.60m | 1.47m | 5.30m | 2.10m |
| BV125 7′ H/R | 165R13C | 2700kg | 850kg | 3.60m | 1.47m | 5.30m | 2.10m |
| BV106 6′ H/R | 155/70R12C | 3500kg | 900kg | 3.00m | 1.73m | 4.70m | 2.30m |
| BV106 7′ H/R | 155/70R12C | 3500kg | 935kg | 3.00m | 1.73m | 4.70m | 2.30m |
| BV126 6′ H/R | 155/70R12C | 3500kg | 980kg | 3.60m | 1.73m | 5.35m | 2.30m |
| BV126 7′ H/R | 155/70R12C | 3500kg | 1030kg | 3.60m | 1.73m | 5.35m | 2.30m |
