Ifor Williams BV85 Box Van Trailer
Model Details

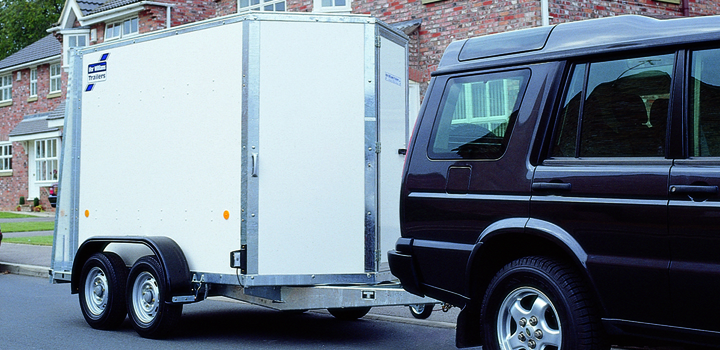

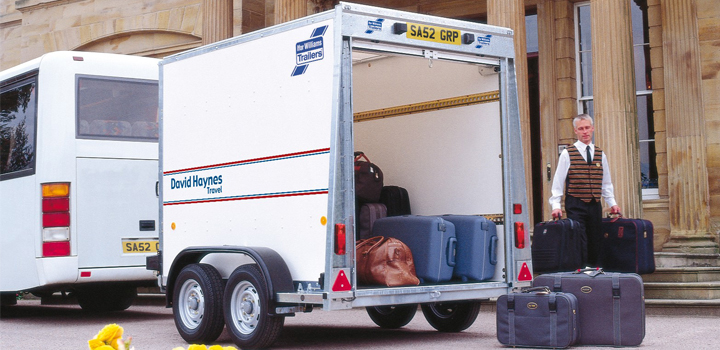

Here at Atkins Farm Machinery we stock the Ifor Williams BV85 box van for sale. The box van is available in 6 different models ranging from 1400 kg to 2700 kg gross weight vans. The trailers also come in a variety of heights 5, 6 and 7 foot are available for sale. All BV85 models measure 4.10 meters in length and 2.10 meters in width making them a versatile all rounder.

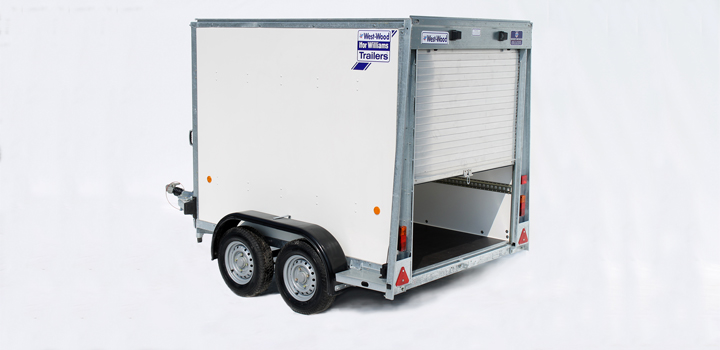

The BV85 box trailer from Ifor Williams is fitted with roller shutter, combination ramp doors or van rear doors. The Ifor Williams braked box trailers feature an exclusive beam axle and leaf spring suspension that has been developed for a safe and stable ride. Similar systems are widely used on commercial vehicles, where performance under load is important.
Specification
| Model | Tyres | Gross Weight | Unladen Weight | Internal Length | Internal Width | Overall Length | Overall Width |
|---|---|---|---|---|---|---|---|
| BV84 Single Axle | 165R13C | 1400kg | 515kg | 2.40m | 1.17m | 3.90m | 1.80m |
| BV84 | 165R13C | 2700kg | 605kg | 2.40m | 1.17m | 3.90m | 1.80m |
| BV85 5′ H/R | 165R13C | 2700kg | 640kg | 2.40m | 1.47m | 4.10m | 2.10m |
| BV85 5′ H/R Single Axle | 165R13C | 1400kg | 550kg | 2.40m | 1.47m | 4.10m | 2.10m |
| BV85 6′ H/R | 165R13C | 2700kg | 675kg | 2.40m | 1.47m | 4.10m | 2.10m |
| BV85 6′ H/R Single Axle | 165R13C | 1400kg | 585kg | 2.40m | 1.47m | 4.10m | 2.10m |
| BV85 7′ H/R | 165R13C | 2700kg | 770kg | 2.40m | 1.47m | 4.10m | 2.10m |
| BV85 7′ H/R Single Axle | 165R13C | 1400kg | 620kg | 2.40m | 1.47m | 4.10m | 2.10m |
| BV105 5′ H/R | 165R13C | 2700kg | 705kg | 3.00m | 1.47m | 4.70m | 2.10m |
| BV105 6′ H/R | 165R13C | 2700kg | 735kg | 3.00m | 1.47m | 4.70m | 2.10m |
| BV105 7′ H/R | 165R13C | 2700kg | 770kg | 3.00m | 1.47m | 4.10m | 2.10m |
| BV125 6′ H/R | 165R13C | 2700kg | 800kg | 3.60m | 1.47m | 5.30m | 2.10m |
| BV125 7′ H/R | 165R13C | 2700kg | 850kg | 3.60m | 1.47m | 5.30m | 2.10m |
| BV106 6′ H/R | 155/70R12C | 3500kg | 900kg | 3.00m | 1.73m | 4.70m | 2.30m |
| BV106 7′ H/R | 155/70R12C | 3500kg | 935kg | 3.00m | 1.73m | 4.70m | 2.30m |
| BV126 6′ H/R | 155/70R12C | 3500kg | 980kg | 3.60m | 1.73m | 5.35m | 2.30m |
| BV126 7′ H/R | 155/70R12C | 3500kg | 1030kg | 3.60m | 1.73m | 5.35m | 2.30m |
